In the demanding world of earthmoving and heavy construction, the cutting edge is the frontline soldier. how to select the correct cutting edge blade and when to maintain it is crucial for maximizing productivity and minimizing operational costs for graders, bulldozers, and loaders are very important.

What is a Cutting Edge?

At its core, a cutting edge is a replaceable steel bar bolted to the moldboard or bucket of your heavy equipment. They usually have a flat, straight, or curved bar shape—appears straightforward, its metallurgy and design are highly sophisticated. Its primary function is to penetrate, scoop, carry, and level materials ranging from soft dirt to abrasive gravel and rock.

However, its role extends beyond mere cutting; it also serves as a sacrificial wear component. By protecting the more expensive base edge of the bucket or moldboard from wear, the cutting edge dramatically extends the lifespan of the entire attachment.

The Importance of Material and Hardness The performance of a cutting edge and end bit are dictated almost entirely by theirs material composition and heat treatment. The goal is to achieve a balance between hardness which is to resist abrasion and toughness which is to resist impact and breakage.

A cutting edge blade that is too hard will be brittle and prone to chipping when striking rocks. Conversely, one that is too soft will wear down rapidly, leading to inefficient operations and increased downtime for replacements. Most premium cutting edges and end bits are manufactured from high-carbon, high-manganese alloy or boron steel. The manufacturing process typically involves through-hardening or induction hardening. Through-hardening provides uniform hardness, making the edge suitable for applications involving high impact. Induction hardening, conversely, creates a very hard surface (up to 500+ Brinell) while maintaining a softer, ductile core. This provides excellent resistance to abrasive wear on the surface but allows the core to absorb shocks, making it ideal for severe wear applications like grading rock or pushing blasted material.

Types of Cutting Edges and end bits for Your Equipment

Choosing the right profile is as important as choosing the right steel.

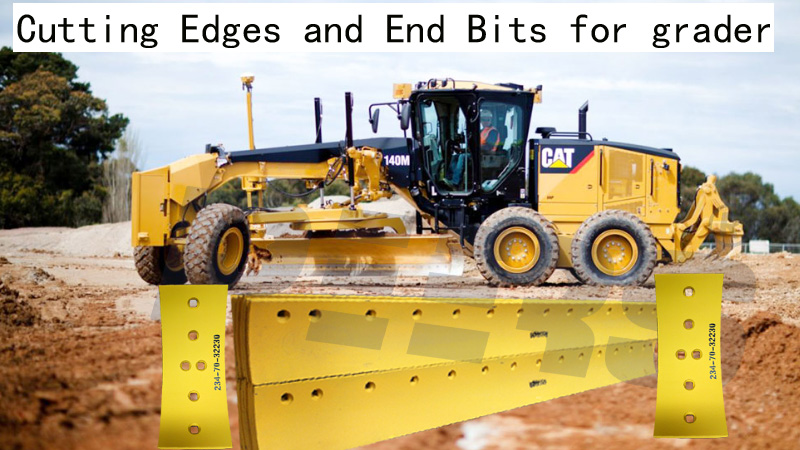

- Grader Cutting Edges: Typically flat, they rely on the angle of the moldboard to cut and roll material. They often feature a serrated profile to break up compacted soils.

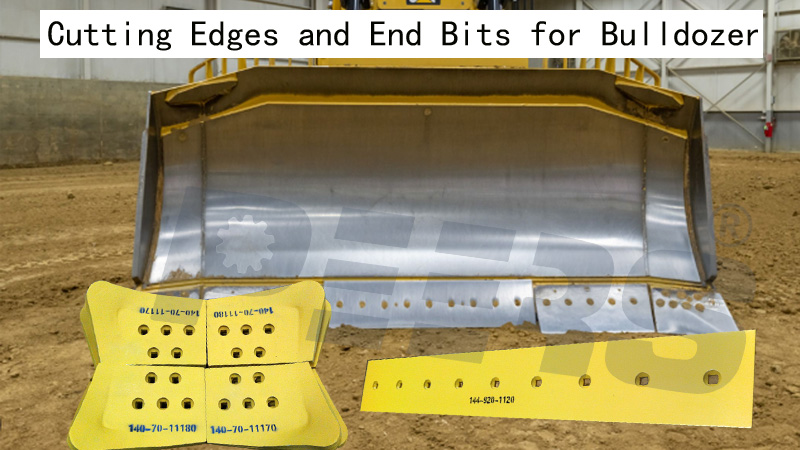

- Bulldozer Cutting Edges: Usually thicker and wider to handle immense pushing loads. "V" or "L" shaped edges are common, providing strength and a penetrating tip.

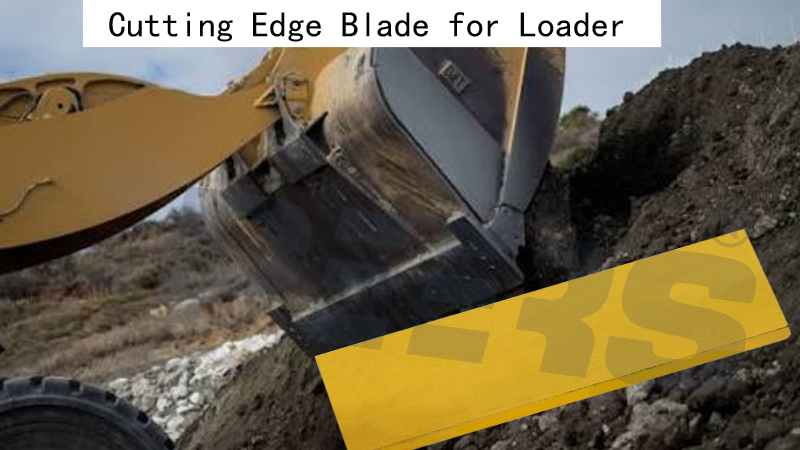

- Loader Cutting Edges: Often feature a flat, heavy profile with bolt holes. They frequently utilize a bolt-on or weld-on edge, and sometimes incorporate a "wear rider" to protect the bucket heel.

When is it Time to Replace?

A worn cutting edge doesn't just reduce performance; it can cause significant damage. The "wear limit" is generally reached when the edge is worn back to the bolt holes, when the thickness is reduced by 50%, or when the cutting edge becomes rounded. A rounded edge cannot penetrate efficiently, increasing fuel consumption by 15-20%. replacement bulldozer, loader and grader blade cutting edge promptly ensures maximum productivity and prevents wear to the moldboard or bucket base.

Extending the Life of Your Cutting Edge Maintenance is key.

Regularly rotating reversible edges (if applicable) or flipping them to utilize both sides can double the lifespan. Additionally, ensure your machine's angle of attack is correct; too steep causes excessive wear, while too shallow reduces productivity. The cutting edge and end bit is more than just a blade—it is the deciding factor between a profitable worksite and a costly one.

By understanding the metallurgy, choosing the right profile, and monitoring wear, you ensure your grader, bulldozer, or loader performs at its peak efficiency, season after season. Choose quality, choose durability, and keep your operation cutting edge and end bit through the competition.
